Product Introduction：
Split-type PTFE-lined butterfly valve (two-piece split-type PTFE-lined butterfly valve)

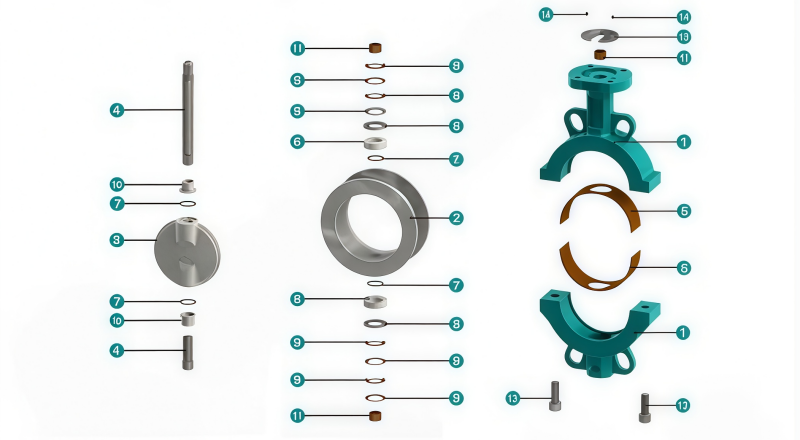

The valve body is split in half vertically along the valve stem centerline and fastened together with high-strength bolts.
It is available in two main series: split-type wafer-type PTFE-lined butterfly valves (D71F4/F46, D671F4) and split-type flange-type PTFE-lined butterfly valves (D41F4/F46, D641F4).
All channels are lined with PTFE/F4, FEP/F46, or PFA fluoroplastics. The metal matrix completely isolates it from highly corrosive media, making it a mainstream corrosion-resistant shut-off/regulating valve in the chemical, desulfurization, and electroplating industries.
Advantages of (compared to integrated types):
Perfectly molded lining, eliminating leakage.
Extremely low maintenance costs, parts can be replaced individually.
Stronger valve body rigidity, stable pressure resistance.
Upgraded sealing performance, bidirectional zero leakage.
Suitable for wear-resistant conditions containing particles.
Suitable for automated remote control.
Specifications:
Operation type:Manual-Worm Gear
Size: DN50-DN1200
Pressure: PN10/16, Class150,JIS6K/10K
Face to Face Standard: API609,BS5155,DIN3202,ISO5752
Flange Standard:DIN,BS,ISO,ANSI,AS,JIS
Mounting Flange:ISO5211
Materials:
Body : Ductile Iron
Disc: CF8+PTFE
Seal : PTFE
Stem : Stainless Steel
Worm Gear:Cast Iron
Characteristic:
Applicable Medium: Water, Oil, Gas
Applicable Temperature:-40~200℃
| Lining Material | Temperature Resistance | Core Advantages | Applicable Working Conditions: |
| PTFE (F4) | -40~120℃ | Resistant to all strong corrosion, high cost-effectiveness. | Suitable for strong acids and alkalis at room temperature, hydrochloric acid, nitric acid, and electroplating wastewater. |
| FEP (F46) | -40~150℃ | Good toughness, not easily brittle, wear-resistant. | Suitable for desulfurization lime slurry and media containing solid particles. |
| PFA: | -40~200℃ | High temperature resistance, no exudation, sanitary grade. | Suitable for fine chemicals, pharmaceuticals, and high-temperature corrosive liquids. |
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
