Product Introduction：

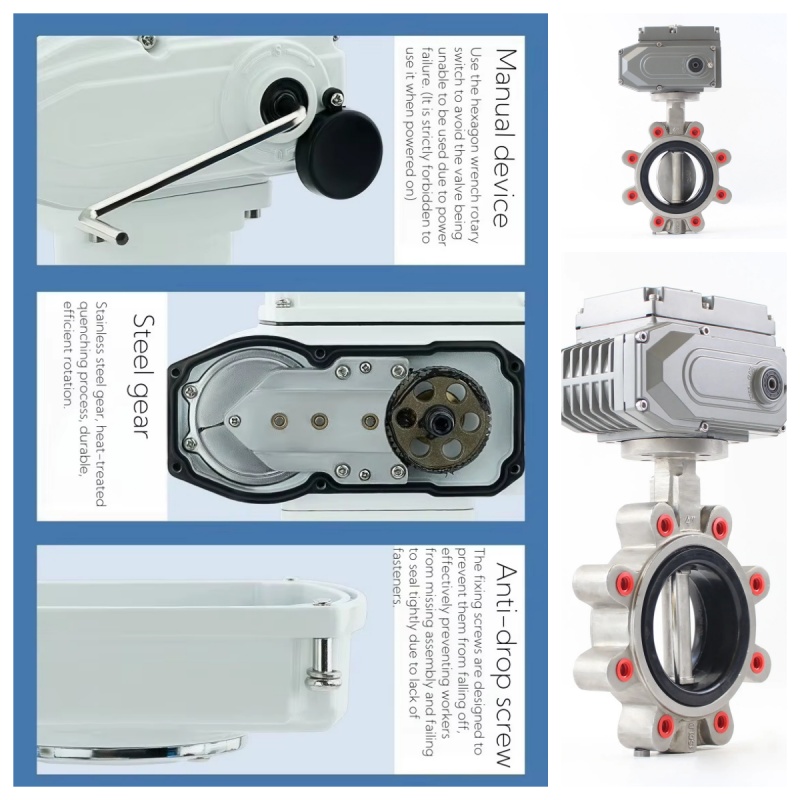

The electric lug butterfly valve consists of a lug-type centerline butterfly valve body and an electric actuator.
Driven by a motor, it rotates 90° to achieve pipeline on/off switching and flow regulation.
The valve body features an independent threaded lug, allowing for single-sided flange pressure bearing.
It is compatible with American Standard Class 150/300 and Chinese Standard PN10/PN16 pipelines, with diameters ranging from DN50 to DN1200.
It is widely used in automated piping networks for water supply and drainage, fire protection, chemical, and power plant circulating water systems.
Remote central control is possible, eliminating the need for manual on-site operation.
Advantages:
Automated remote control;
Dual operation guarantee;
Stable sealing;
Strong installation adaptability;
Stable operation and low maintenance;
Low flow resistance.
Specifications:
Operation type:Electric-Switch Type
Size: DN40-DN2000
Pressure: PN10/16, Class150,JIS6K/10K
Face to Face Standard: API609,BS5155,DIN3202,ISO5752
Flange Standard:DIN,BS,ISO,ANSI,AS,JIS
Mounting Flange:ISO5211
Materials:
Body : WCB
Disc: CF8M
Seal : EPDM/NBR
Stem : Stainless Steel
Switch Type Electric Actuator:220v/380v
No. | Part Name | Material |
1 | Body | Cast Iron/Carbon Steel/Stainless Steel/Al-Bronze |
2 | Disc | Cast Iron/Stainless Steel/Al-Bronze |
3 | Seat | EPDM/PEFE/Buna/NBR/Hypalon/Viton |
4 | Stem | WCB/SS416/SS410 |
5 | Bushing | PTFE/Lubricating |
6 | O ring | EPDM/PEFE/Buna/NBR/Hypalon |
--------------------------------------------------------------------------------------------------------------------------------------
Characteristic:
Applicable Medium: Water, Oil, Gas
Applicable Temperature:-20~120℃
Nominal Pressure (Mpa) | 1.0 | 1.6 |
Nominal Diameter(mm) | 40-600 | 40-600 |
Test Pressure (Mpa) | Shell | 1.5 | 2.4 |
Seal | 1.1 | 1.76 |
Applicable Temperature | -20-120℃ |
Applicable Medium | Water, Sewage, Sea water, Air, Food, Medicine, Oils, Acids, etc. |
Operating Type | Manual, Worm Gear, Pneumatic, Electric, etc. |
Electric Actuator Parameters:
ON/OFF Electric Actuators |
|
|
|
|
|
|
|
|
Model | 3 | 5 | 10 | 15 | 30 | 60 | 100 | 200 |
Torque NM | 30Nm | 50Nm | 100Nm | 150Nm | 300Nm | 600Nm | 1000Nm | 2000Nm |
Actuator speed | 25S | 25S/50S | 10S/15S/30S/60S | 30S/60S | 30S | 45S |
Working current | 0.25A | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A |
Motor power | 6W/F | 15W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F |
Voltage | AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph |
Modulating Electric Actuators |
|
|
|
|
|
|
|
|
Model | 03E | 05E | 10E | 15E | 30E | 60E | 100E | 200E |
Torque NM | 30Nm | 50Nm | 100Nm | 150Nm | 300Nm | 600Nm | 1000Nm | 2000Nm |
Actuator speed | 25S | 25S/50S | 10S/15S/30S/60S | 30S/60S | 30S | 45S |
Working current | 0.25A | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A |
Motor power | 6W/F | 15W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F |
Voltage | AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph |
Input signal | 4-20mADC,1-5VDC,0-10VDC |
Output signal | 4-20mADC,0-10VDC |
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
