Product Introduction

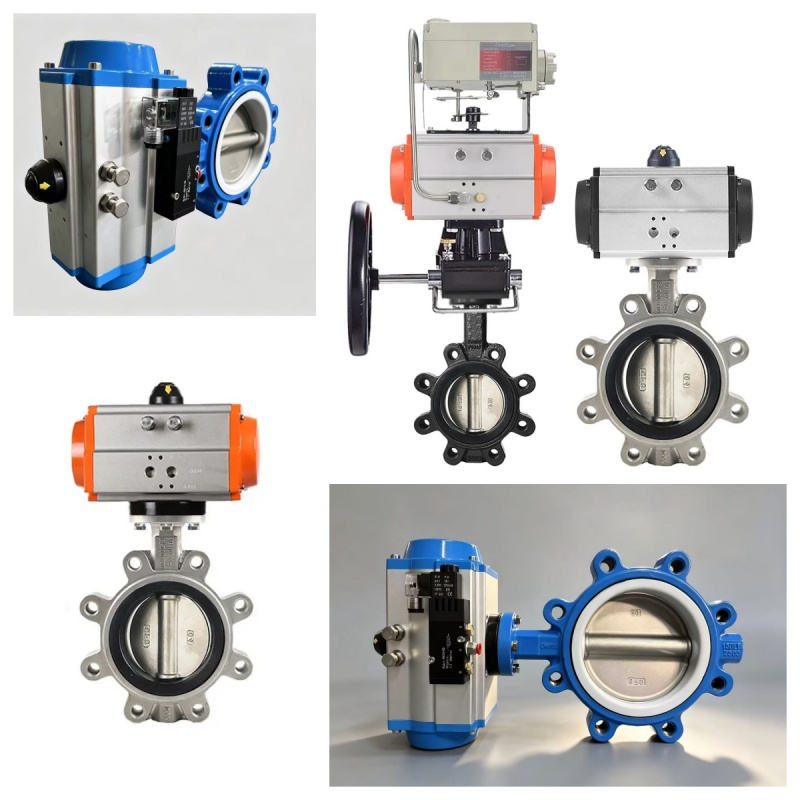

The Lug-Type Pneumatic Butterfly Valve is a combination of a lug-type centerline butterfly valve and a pneumatic actuator.
Powered by compressed air, it drives the butterfly plate to rotate 90°, achieving pipeline media shut-off and on/off control, and also allowing for simple flow regulation.
The valve body features an integrated threaded lug (support lug), allowing independent connection to the flanges of both pipes using short bolts. Unlike ordinary wafer butterfly valves, it supports blind flange installation at the pipeline end and single-sided pipe disassembly for maintenance, making it a mainstream automatic control valve for water treatment, HVAC, fire protection, and chemical automation pipelines.
Features:
1.Unique lug-type connection allows for single-sided pipe disassembly while the other side remains sealed and pressurized; supports installation at the pipeline end (head).
2.Centerline soft seal structure provides bidirectional sealing, excellent closing sealing performance, and can achieve bubble-level sealing.
3.Highly expandable for automation：
Can be equipped with solenoid valves, pneumatic triplet units, limit switches, and valve positioners to achieve remote PLC automatic control, signal feedback, and proportional regulation.
4.Easy maintenance: The valve seat can be replaced individually; the pinless butterfly plate connection reduces internal leakage points and simplifies disassembly and assembly.
Specifications:
Operation type:Pneumatic -Double Acting
Size: DN40-DN1200
Pressure: PN10/16, Class150,JIS6K/10K
Design | Flange Connection | Face to Face | Test |
MSS SP-67
API609
EN593 | DIN PN10/16/25; ANSI B 16.1
BS4504; ISO PN10/16
JIS B 2212/2213
BS 10 table D; BS 10 table E | API609
ISO5752 BS5155 | API 598 |
|
-----------------------------------------------------------------------------------------------------------
Materials:
Body : CF8
Disc: CF8
Seal : PTFE
Stem : Stainless Steel
No. | Part Name | Material |
1 | Body | Cast Iron/Carbon Steel/Stainless Steel/Al-Bronze |
2 | Disc | Cast Iron/Stainless Steel/Al-Bronze |
3 | Seat | EPDM/PEFE/Buna/NBR/Hypalon/Viton |
4 | Stem | WCB/SS416/SS410 |
5 | Bushing | PTFE/Lubricating |
6 | O ring | EPDM/PEFE/Buna/NBR/Hypalon |
--------------------------------------------------------------------------------------------------------------------------------------
Characteristic:
Applicable Medium: Water, Oil, Gas
Applicable Temperature:-40~200℃
Nominal Pressure (Mpa) | 1.0 | 1.6 |
Nominal Diameter(mm) | 40-600 | 40-600 |
Test Pressure (Mpa) | Shell | 1.5 | 2.4 |
Seal | 1.1 | 1.76 |
Applicable Temperature | -40-200℃ |
Applicable Medium | Water, Sewage, Sea water, Air, Food, Medicine, Oils, Acids, etc. |
Operating Type | Manual, Worm Gear, Pneumatic, Electric, etc. |
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
