Product Introduction：

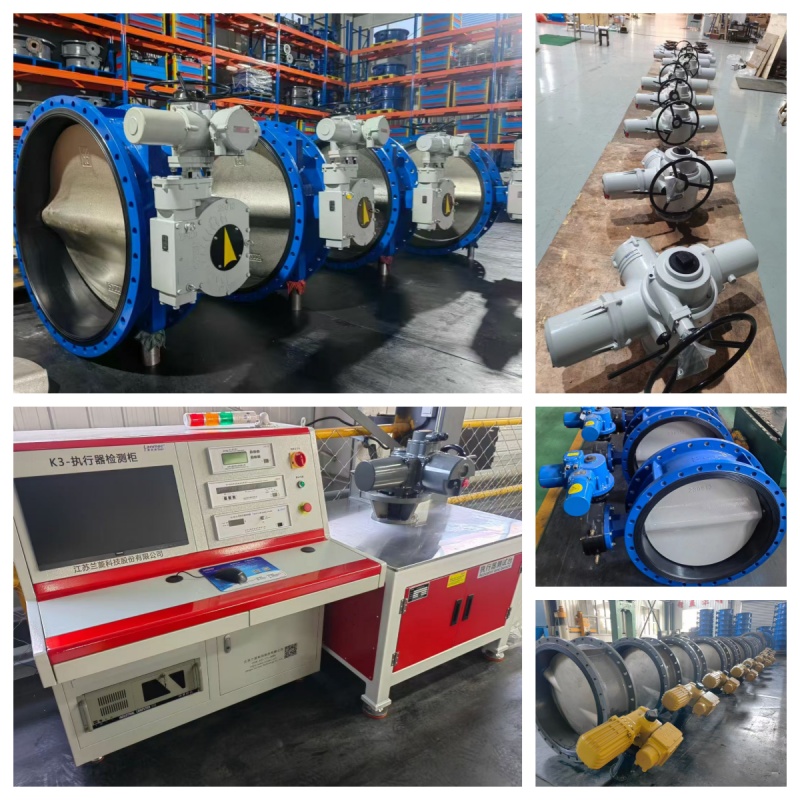

The electric intelligent regulating flange butterfly valve consists of a flanged butterfly valve body and an intelligent integrated regulating electric actuator.
The valve relies on the electric actuator to drive the butterfly plate to rotate steplessly within the range of 0° to 90°,
Receiving standard analog signals from the automation system to continuously and accurately regulate the flow rate, pressure, and temperature of the pipeline medium. The flange connection ensures secure installation and convenient disassembly and maintenance.
Compared to wafer-type butterfly valves, it offers stronger shock resistance and pressure resistance.
And is widely used in automated fluid control systems in industrial processes, municipal HVAC, and water treatment, providing both regulating and shut-off functions.
Advantages:
1.Intelligent and Precise Adjustment:
Closed-loop servo control ensures high positioning accuracy; 0~100% opening is continuously adjustable; stable flow characteristics meet the needs of precision process adjustment.
2.Rigid Flange Connection:
Flange bolt fastening ensures secure installation in large-diameter and vibration-prone environments, facilitating easy disassembly and maintenance.
3.Excellent Flow Performance:
Low flow resistance and high flow capacity make it suitable for liquids, gases, and media containing slight particulate matter.
4.Integrated Intelligent Electrical System:
No external servo amplifier required; supports remote signal feedback and local panel operation; optional RS485/Modbus communication for integration with IoT DCS systems.
5.Multiple Safety Protections:
Motor overheat protection, torque overload protection, upper and lower mechanical limits, power failure with selectable position retention/automatic reset;
Configurable with explosion-proof actuator (ExdⅡBT4).
Specifications:
Operation type:Electric-Intelligent Adjustment Type
Size: DN50-DN2200
Pressure: PN10/16, Class150,JIS6K/10K
Face to Face Standard: API609,BS5155,DIN3202,ISO5752
Flange Standard:DIN,BS,ISO,ANSI,AS,JIS
Mounting Flange:ISO5211
Materials:
Body :WCB
Disc: CF8M
Seal : NBR
Stem : SS416
No. | Part Name | Material |
1 | Body | Cast Iron/Carbon Steel/Stainless Steel/Al-Bronze |
2 | Disc | Cast Iron/Stainless Steel/Al-Bronze |
3 | Seat | EPDM/PEFE/Buna/NBR/Hypalon/Viton |
4 | Stem | WCB/SS416/SS410 |
5 | Bushing | PTFE/Lubricating |
6 | O ring | EPDM/PEFE/Buna/NBR/Hypalon |
Characteristic:
Applicable Medium: Water, Oil, Gas
Applicable Temperature:-20~120℃
Nominal Pressure (Mpa) | 1.0 | 1.6 |
Nominal Diameter(mm) | 40-600 | 40-600 |
Test Pressure (Mpa) | Shell | 1.5 | 2.4 |
Seal | 1.1 | 1.76 |
Applicable Temperature | -20-120℃ |
Applicable Medium | Water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids, etc. |
Operating Type | Manual, Worm Gear, Pneumatic, Electric, etc. |
Electric Actuator Parameters
ON/OFF Electric Actuators |
|
|
|
|
|
|
|
|
Model | 3 | 5 | 10 | 15 | 30 | 60 | 100 | 200 |
Torque NM | 30Nm | 50Nm | 100Nm | 150Nm | 300Nm | 600Nm | 1000Nm | 2000Nm |
Actuator speed | 25S | 25S/50S | 10S/15S/30S/60S | 30S/60S | 30S | 45S |
Working current | 0.25A | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A |
Motor power | 6W/F | 15W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F |
Voltage | AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph |
Modulating Electric Actuators |
|
|
|
|
|
|
|
|
Model | 03E | 05E | 10E | 15E | 30E | 60E | 100E | 200E |
Torque NM | 30Nm | 50Nm | 100Nm | 150Nm | 300Nm | 600Nm | 1000Nm | 2000Nm |
Actuator speed | 25S | 25S/50S | 10S/15S/30S/60S | 30S/60S | 30S | 45S |
Working current | 0.25A | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A |
Motor power | 6W/F | 15W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F |
Voltage | AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph |
Input signal | 4-20mADC,1-5VDC,0-10VDC |
Output signal | 4-20mADC,0-10VDC |
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
