Product Introduction:
The PTFE seat flange butterfly valve uses an integral PTFE (polytetrafluoroethylene) seat and flange connection structure.
It can be configured with worm gear manual, pneumatic, or compact electric actuation.
Media shut-off and flow regulation are achieved by rotating the butterfly plate from 0° to 90°.
PTFE seats are compatible with highly corrosive media and high/low temperature conditions.
They also possess non-stick, wear-resistant, and chemical corrosion-resistant properties, overcoming the shortcomings of rubber seats in resisting acids, alkalis, and organic solvents.
They are widely used in pipelines handling corrosive fluids in chemical, electroplating, pure water, food, and pharmaceutical industries.
Features:
• Excellent resistance to acid, alkali and organic solvents.
• Wide operating temperature range: -20℃ ~ 150℃• Anti-sticking, low friction, anti-scaling.
• Bidirectional bubble-tight shut-off.
• Aging resistant, not swollen by chemical medium.
• Multiple actuator options: manual, pneumatic, electric modulating type.
• Standard flanged connection, easy installation and maintenance.
Basic Specifications:
Nominal Diameter: DN50～DN1200
Nominal Pressure: PN10, PN16; Class 150
Flange Standard: GB/T9113, HG20592, ANSI B16.5
Execution Standard: GB/T12238; Pressure Testing Standard: GB/T13927
Nominal Pressure (Mpa) | 1.0 | 1.6 |
Nominal Diameter(mm) | 40-600 | 40-600 |
Test Pressure (Mpa) | Shell | 1.5 | 2.4 |
Seal | 1.1 | 1.76 |
Applicable Temperature | -20-150℃ |
Applicable Medium | Water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids, etc. |
Operating Type | Manual, Worm Gear, Pneumatic, Electric, etc. |
Sealing Core Parameters:
Seat Material: PTFE (Polytetrafluoroethylene)
Operating Temperature: -20℃ ~ 150℃
Applicable Media: Hydrochloric acid, dilute sulfuric acid, caustic soda, salt solution, various solvents, pure water, chemicals
Prohibited Operating Conditions: Molten alkali metals, fluorine gas, and other strong oxidizing media

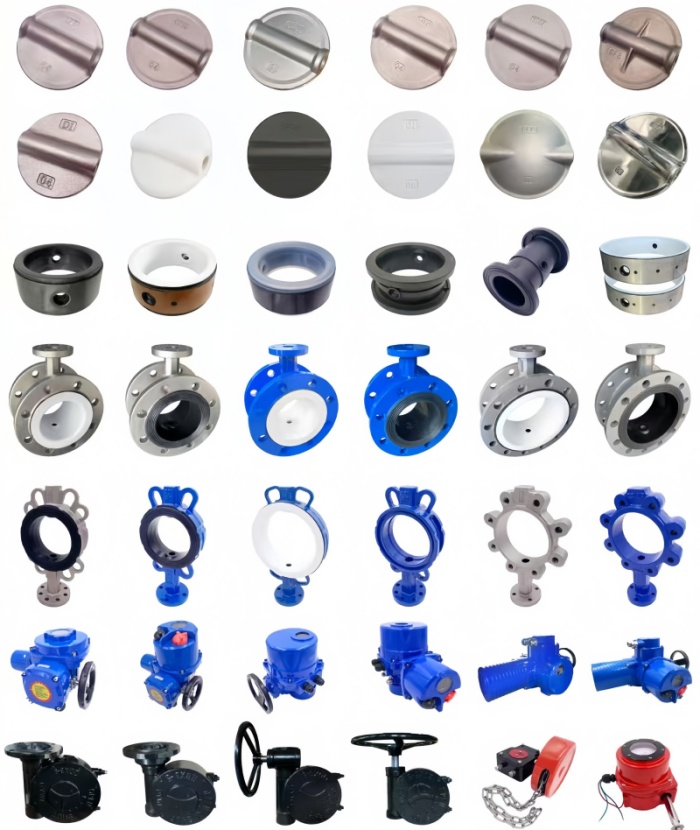

Material Options:
Valve Body: QT450 ductile iron, WCB, 304, 316, 316L stainless steel
Butterfly Plate: Ductile iron, 304, 316, PTFE surface coating
Stem: 304 / 316 stainless steel
