Product Introduction:

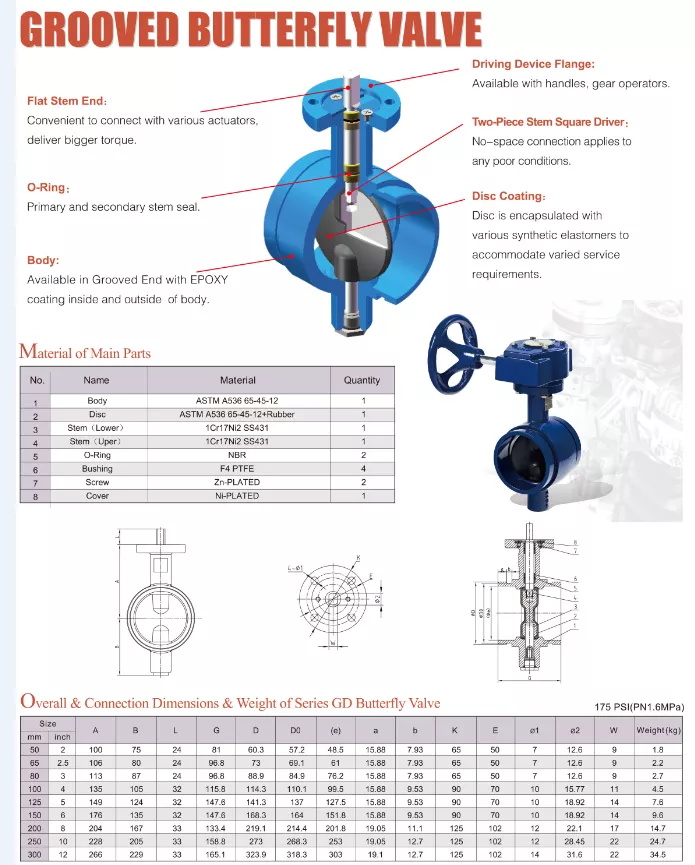

D81X grooved butterfly valve is a center-line soft-seal butterfly valve, employing a grooved (clamp) connection method and direct handle actuation.
Standard grooves are machined at both ends of the valve body, allowing for quick assembly with grooved pipelines via fire-fighting clamps.
The butterfly plate rotates from 0° to 90°, achieving both media cutoff and simple throttling, providing bidirectional sealing.
Its compact structure, lightweight design, and convenient installation make it a mainstream valve for fire sprinkler systems, HVAC, and water supply and drainage networks.
Features:
• Grooved clamp connection, fast installation & easy maintenance.
• Centerline structure, low operating torque, bidirectional bubble-tight sealing.
• Compact & lightweight, save installation space.
• Allow minor pipe displacement and thermal expansion.
• Ductile iron body with epoxy coating, anti-corrosion.
• Optional lockable lever or signal switch for fire service.
Technical Data:
Size: DN50 ~ DN300.
Pressure: PN10, PN16.
Seat: EPDM.
Body Material: QT450 Ductile Iron.
Medium: Cold water, fire water, air.
Temperature: 0 ~ 80℃.
Standard: GB/T12238, GB/T13927.
Applicable Media and Application Industries:
Applicable Media: Normal temperature clean water, fire-fighting water, circulating water, air.
Application Areas: Fire sprinkler systems, fire hydrant networks, central air conditioning and HVAC circulating water systems, municipal water supply and drainage, pump room piping, building equipment rooms, underground pipe gallery trench piping.
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
