Product Description:

• Double Acting Pneumatic Pinch Valve is designed for reliable on/off and flow control of slurry, sewage, powder, tailings and other abrasive media in demanding industrial pipelines. Featuring a full bore straight-through flow passage and flexible rubber sleeve sealing structure, this air operated pinch valve provides tight shutoff, low flow resistance and anti-clogging performance for media containing solids and particles.

• The flanged pneumatic pinch valve uses a double acting pneumatic cylinder for fast, stable actuation. The replaceable rubber sleeve is the main wetted and sealing component, helping isolate the valve body from process media and reduce wear. Sleeve materials can be customized in Natural Rubber, NBR, EPDM, Neoprene or Viton for different abrasion, corrosion and temperature requirements.

• Available in DN25-DN400, this industrial pinch valve supports Cast Iron, Ductile Iron, Carbon Steel and Stainless Steel body options. Its flanged connection, full port design and replaceable sleeve simplify maintenance and reduce downtime.

• Ideal for mining, mineral processing, slurry transportation, wastewater treatment, chemical plants, cement, power plants, powder handling and bulk material systems, this heavy duty slurry valve is suitable for ore pulp, sludge, sewage, abrasive particles and corrosive media.

• OEM and ODM customization is available for size, body material, rubber sleeve, flange standard, pneumatic accessories, solenoid valve, air filter regulator, limit switch, logo and packaging. Contact us for drawings, sleeve options and factory direct quotation.

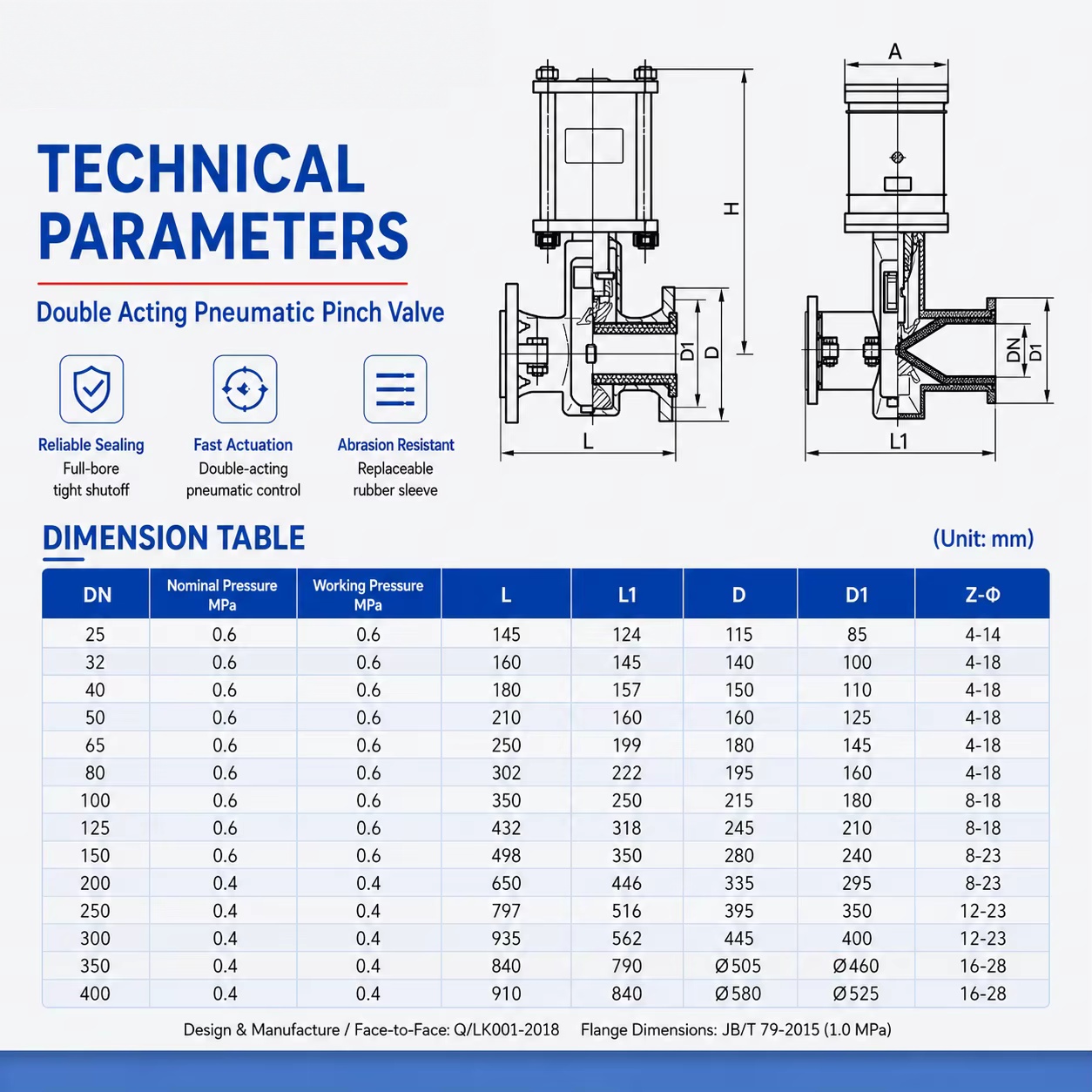

Core Technical Parameters:

Nominal diameter: DN15 to DN1200.

Nominal pressure: Commonly PN0.6, PN1.0, PN1.6 (mainstream ≤ 1.6 MPa, custom high-pressure can reach 2.5 MPa).

Operating temperature: -30℃ to 120℃ (ordinary rubber), fluororubber up to 180℃.

Sealing grade: VI level bubble-free zero leakage.

All valves are equipped with professional export protective packaging.

With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.

We can also customize packaging according to customer requirements.

Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.

Common transportation methods include: sea freight, air freight, land freight, and express delivery.
