Product Introduction：
Wafer Type Stainless Steel Butterfly Valve

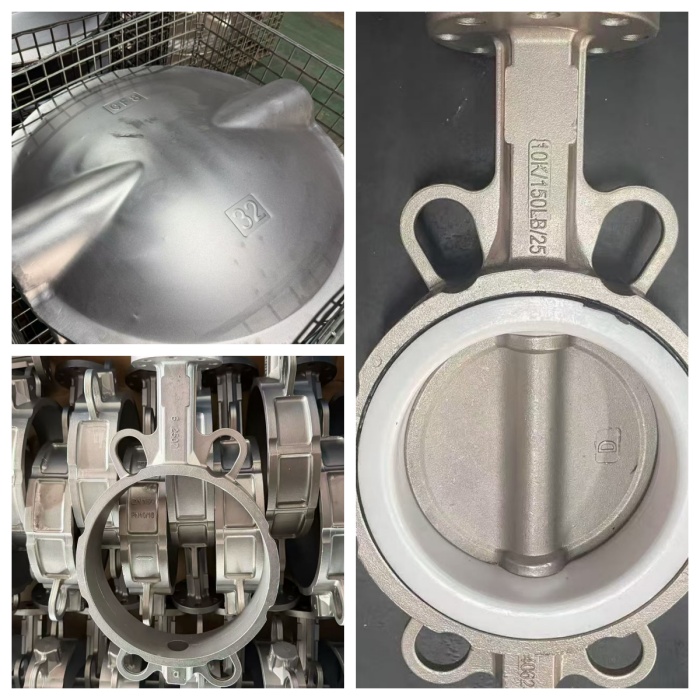

Wafer stainless steel butterfly valve adopts CF8/CF8M stainless steel body, resilient seat design. 90-degree rotary operation for on-off and flow regulation. Compact wafer structure installed between pipe flanges. Excellent corrosion resistance, bidirectional tight shut-off. Available in lever, gear, pneumatic, electric actuator. Widely used in water treatment, chemical, food, marine, environmental engineering for corrosive liquid, gas medium.
Structural features:
-Valve body: Usually adopts wafer connection, compact structure, light weight, easy installation and maintenance.
-Valve disc: The valve disc is the core component of the butterfly valve, usually in the shape of a disc, and controls the on and off of the fluid by rotation.
-Sealing material: The sealing material of the soft-sealed butterfly valve is usually rubber, polytetrafluoroethylene (PTFE) or other elastic materials, with good sealing performance.
-Valve stem: The valve stem connects the valve plate and the operating mechanism, and transmits the operating force to rotate the valve plate.
Specifications:
Operation type:Manual-Lever
Size: DN50-DN1200
Pressure: PN10/16, Class150,JIS6K/10K
Design | Flange Connection | Face to Face | Test |
MSS SP-67
API609
EN593 | DIN PN10/16/25; ANSI B 16.1
BS4504; ISO PN10/16
JIS B 2212/2213
BS 10 table D; BS 10 table E | API609
ISO5752 BS5155 | API 598 |
|
--------------------------------------------------------------------------------------------------------------------------------------
Materials:
Body : CF8
Disc: CF8M
Seal : PTFE
Stem : Stainless Steel
Lever:CF8
No. | Part Name | Material |
1 | Body | Cast Iron/Carbon Steel/Stainless Steel/Al-Bronze |
2 | Disc | Cast Iron/Stainless Steel/Al-Bronze |
3 | Seat | EPDM/PEFE/Buna/NBR/Hypalon/Viton |
4 | Stem | WCB/SS416/SS410 |
5 | Bushing | PTFE/Lubricating |
6 | O ring | EPDM/PEFE/Buna/NBR/Hypalon |
--------------------------------------------------------------------------------------------------------------------------------------
Characteristic:
Applicable Medium: Water, Oil, Gas
Applicable Temperature:-40~180℃
Nominal Pressure (Mpa) | 1.0 | 1.6 |
Nominal Diameter(mm) | 40-600 | 40-600 |
Test Pressure (Mpa) | Shell | 1.5 | 2.4 |
Seal | 1.1 | 1.76 |
Applicable Temperature | -40~180℃ |
Applicable Medium | Water, Sewage, Sea water, Air, Food, Medicine, Oils, Acids, etc. |
Operating Type | Manual, Worm Gear, Pneumatic, Electric, etc. |
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
