Product Introduction:
D943 electric double eccentric flange butterfly valve consists of double eccentric butterfly valve body and electric actuator.
The electric actuator drives the valve shaft, and the disc rotates at 0°~90° to realize pipeline shut-off and flow regulation.
Adopting advanced double eccentric sealing design, the disc separates from valve seat immediately once opening, effectively reducing friction of sealing parts.
It features reliable bi-directional tight sealing and long service life. Flange connection guarantees stable installation.
This valve is widely used in automatic piping systems of water supply, wastewater treatment, district heating, power plant circulating water and industrial water treatment, supporting local and remote automatic control.
Main Features:
1.Double Eccentric Sealing Design：
Double offset structure avoids continuous scraping between disc and seat during operation.
Low friction loss, tight bi-directional shutoff, suitable for frequent opening & closing working conditions.
2.Flange Connection End：
Standard flange connection with high pressure resistance. Support bracket is available for large diameter valves to reduce pipeline load.
3.Electric Actuator Drive：
Two actuator types for option: On-off type and modulating type.
On-off type: full open / full close control.
Modulating type: 4-20mA / 0-10V analog signal for continuous flow regulation.
Built-in overload protection, position feedback and opening indicator. Explosion-proof electric actuator is optional for hazardous areas.
Power supply: AC220V, AC380V, DC24V.

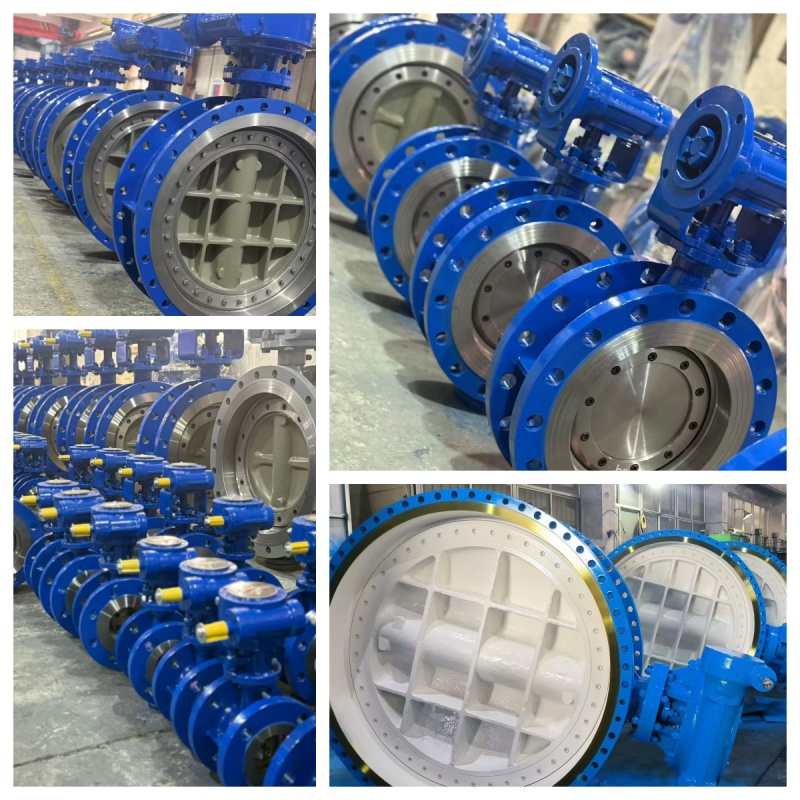

4.Optimized Reinforced Disc：
Grid lightweight disc brings low flow resistance. Replaceable seat seal reduces maintenance cost.
Specifications:
Main Technical Parameters:
Nominal Diameter: DN200～DN2000.
Nominal Pressure: PN10, PN16,PN25,Class150.
Valve Body Material: Ductile Iron QT450, Cast Steel WCB,Stainless Steel.
Sealing Material: EPDM, NBR Rubber, PTFE.
Applicable Media: Clean water, sewage, circulating water, air, neutral industrial fluids
Operating Temperature: Rubber seal ≤80℃; PTFE seal ≤150℃
Control Method: On/Off type, Modulating type; Explosion-proof actuator optional
Power Supply: AC220V / AC380V / DC24V
Product Name | Double Eccentric Butterfly Valve |
Size (mm) | 50-2000mm |
Flange connection | BS4504 PN10, PN16, PN25 and PN40.
DIN2501 PN10, PN16, PN25 and PN40.
ANSI B16.5, 16.47 / 150LB, 300LB
JIS 10K, 16K & 20K / 30K / 40K
|
Face to Face Dimensions | API609,BS5155,ISO5752,ANSI16.34 |
Material | Body | WCB; CF8; CF8M; Al-bronze;STL |
Disc | WCB; CF8; CF8M; Al-bronze;STL |
Stem | SS410/420/416; Monel |
Seat | CF8; CF8M;STL+Flexible Graphite |
| Packing | Flexible Graphite;PTFE |
Operating | Wormgear; Electric; Pneumatic ; |
All valves are equipped with professional export protective packaging.
With protective caps on the sealing surfaces, rust-proof treatment, and shock-absorbing material filling to ensure intact transport; the loading is secure and safe.
We can also customize packaging according to customer requirements.
Regarding transportation methods, we can provide appropriate transportation options based on the cargo requirements and the customer's timeliness requirements.
Common transportation methods include: sea freight, air freight, land freight, and express delivery.
